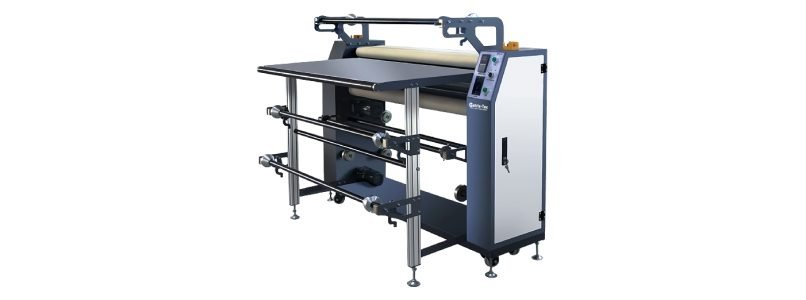

44” & 68” CALAENDER ROLL TO ROLL HEAT PRESS
• All steel component construction
• Temperature accuracy is controlled by thermocouples. ensuring consistency during the entire transfer process.
• Durable driving belt (230C high temperature resistant)
• Easily mechanically adjusted driving belt without the need of an air compressor
• Digital controllers and heat couplings for year-on-year stability
|
Model |
MTX-44 |
MTX-68 |
|
|
Max. Working Width |
44” (1200mm) |
68”(1730mm) |
|
|
DIA of Drum |
Ø7.8”(200mm) |
Ø9.8”(250mm) |
|
|
Max. Temperature |
392ºF(200ºC) |
392ºF(200ºC) |
|
|
Heating Elements |
1 |
1 |
|
|
Heating Media |
Thermal Oil |
Thermal Oil |
|
|
Controller |
Digital Temperature & Time Control |
Digital Temperature & Time Control |
|
|
Max. Feeding Speed |
0-1100mm/min |
0-1200mm/min |
|
|
Media Holder Bar |
6 Bars: 3 feed I 3 take-up |
6 Bars: 3 feed I 3 take-up |
|
|
Max. Material Roll Dimension |
350mm |
350mm |
|
|
Max. Roll Weight |
45kg |
45kg |
|
|
Voltage |
220VAC 50HZ Single Phase |
220VAC 50HZ Three Phase |
|
|
Current |
27A |
30A |
|
|
Power |
6KW |
11KW |
|
|
Noise Level |
30DB |
30DB |
|
|
Net/Gross Weight |
450kg |
450kg |
|
|
Machine Size |
1630*976*1315mm |
2300*1272*1505mm |
|
|
Packing Size |
1830*1190*1630mm |
2480*1440*1830mm |
|
*Specifications are subject to change without prior notice, all rights reserved.
