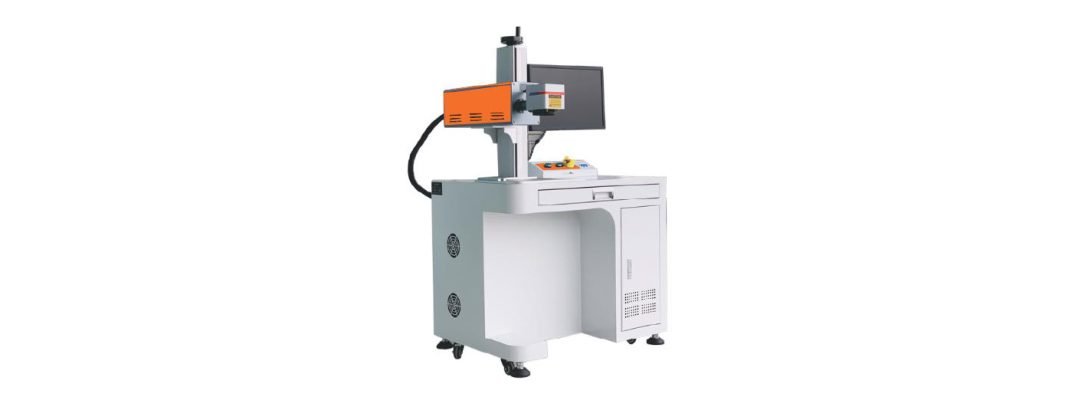

MATRIX-LASER  UV-5W/ 10W

Laser Power

5W/ 10W

Laser device

JP T 5 SE/JPT10E Fiber Laser Generator

Life time >100,000 hours

Laser Wavelength

355 nm

Pulse Repetition Frequency Range

1- 200kHz

Max. Feed Rate

7000 mm/s

Marking Area

110 x 110mm (Standard), 200 x 200mm, 300 x 300mm

Min. Line Width

0. 0 1 mm (material dependent)

Marking Depth

S20um (material dependent)

Min. Character Size

0. 03 mm

Positioning Accuracy

+0.01 mm

Cooling Method

Water Cooling

Positioning Light

Wavelength 650 nm, Power < 30mW

Minimum Character Height

0.2mm< 30mW

Power Consumption

<800W / 220V / 50Hz(or 110v for optional)

Environmental Requirement

0~45°C, Humidity≤90%

Graphic Format Supported

bmp,jpg,gif,tga,ai,dxf,dst,plt,etc.
