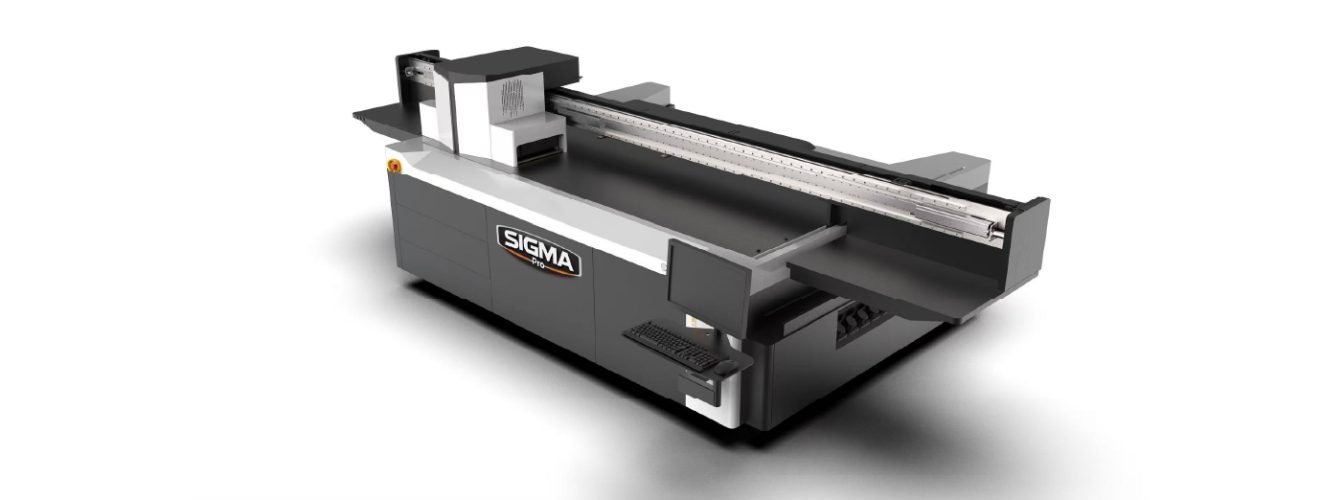

SIGMA PRO UVF-2512

Model

UVF-2512

Print Technology

Piezo continuous drop-on demand (DOD)

Head Model

RICOH GENS/RICOH GEN6/KM 9888H

Printhead Quantity

2-9

Drop Volume

7 Pl. /5 Pl.

Color options

CMYKLcLm+ White + Varnish

Ink Supply System

Automatic continuous ink supply with vacuum negative pressure

INK Type

Environmental friendly UV/LED curable ink

Drying System

LED UV lamp Curing

Flat-Bed Size

2500mm x 1300mm

Print Height

100mm

Print Resolution

600*2400 dpi

Print Mode and Efficiency

300*900 3pass 80m/h (Draft Mode)

Dielectric adsorption

Desktop Vacuum Adsorption

RIP Software

Photo print/Print Factory

Hardware

X-direction driver Servo motor/Linear motor (Opt.)

Y-direction driver Ball screw*2+Linear guider*2+Servo motor*2

Power Requirement

220v (+/-)10%/50A/50HZ

Machine Size 2512

2200mm x 4450mm x 1500mm

Machine Weight

1000kg

Environmental Requirements

Temperature 15ºC – 30ºC
