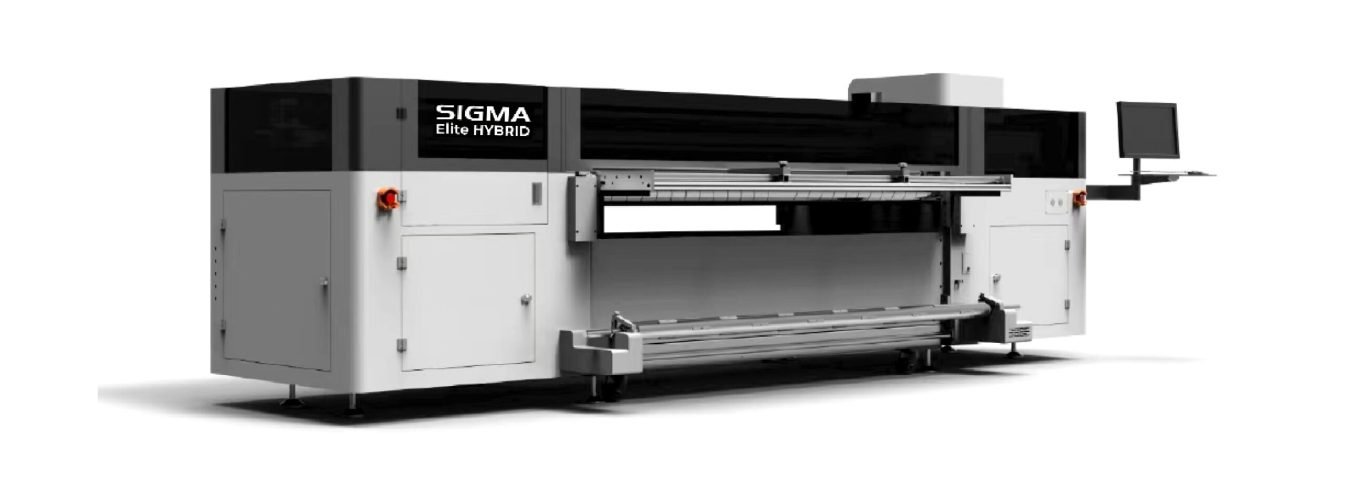

SIGMA ELITE UH-2000

Model

Elite UH-2000

Print Technology

Piezo continuous drop-on demand(DOD)

Head Model

EPSON T3200/ RICOH G6

Printhead Quantity

Max 9-G6/ 6-T3200

Print width

2.1m

Print Resolution

635×2400 ; 635*1800 ; 635*2400

Print Speed Up to

G6 45m2/h, T3200 90m2/h

INK Type

Environmental friendly UV ink

Color profile

C;/CWC;/CW;/WC;/W/C/V(KCMY – W Optional)

Ink supply system

Main ink supply tank and subtank

Media type

Soft roll media(Light box cloth, black and white cloth,
instant post, body perspective sticker, leather, canvas,
floor mat, table mat, etc), Light plate

Take-up and feeding system

Automatic take-up & feeding system, standard configuration with air shaft feeding system

Drying System

UV-LED curing

Table pressure-bearing

50kg/m²

Package size

4520mm * 1160mm * 1650mm

Machine Size

4394mm * 1675mm * 1430mm

Machine Weight

1300kg

Printing interface

USB

Power Requirement

220V±10% / 50HZ

Environmental requirements

Temperature 15°C ~ 30°C/ Relative humidity 40% ~ 80%
