Model |

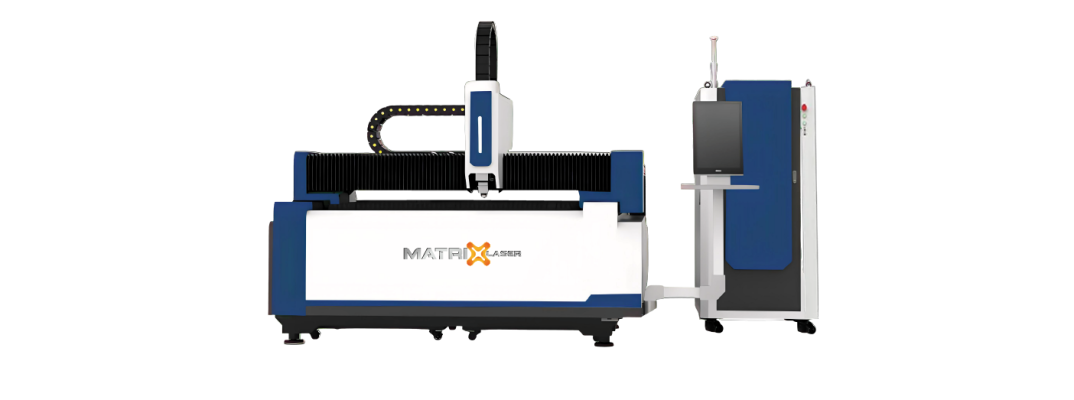

MXL-3015B 6KW |
|||||||
|
Working Area |
3000*1500mm |
|||||||
|
X-Axis Working Area |
3,000mm |
|||||||
|
Y axis working area |
1,500mm |
|||||||
|
Laser Power |
Raycus 6000W |
|||||||
|
Positioning Accuracy |
±0.03mm |
|||||||
|
Repeatability positioning accuracy |
±0.02mm |
|||||||
|
XY Axis Maximum Acceleration |
1G |
|||||||
|
XY Axis Max. speed |
120m/min |
|||||||
|
Working Table |
Serrate working platform |
|||||||
|
XY Axis Transmission system |
Taiwan YYC Helical rack and pinion |
|||||||
|
Z axis Transmission system |
Taiw an TBI ballscrew |
|||||||
|
Cooling System |
Industry water chiller |
|||||||
|
Power Supply Rated Voltage |
3-Phase 380V/50Hz |
|||||||
|
Aluminum Profile |
Gantry Beam |
|||||||
|
Exhaust Fan |
Gantry Beam |
|||||||
|
Electric Parts |
Schneider |
|||||||
|
Fiber laser head |
Raytools BM06K |
|||||||
*Specifications are subject to change without prior notice, all rights reserved.
