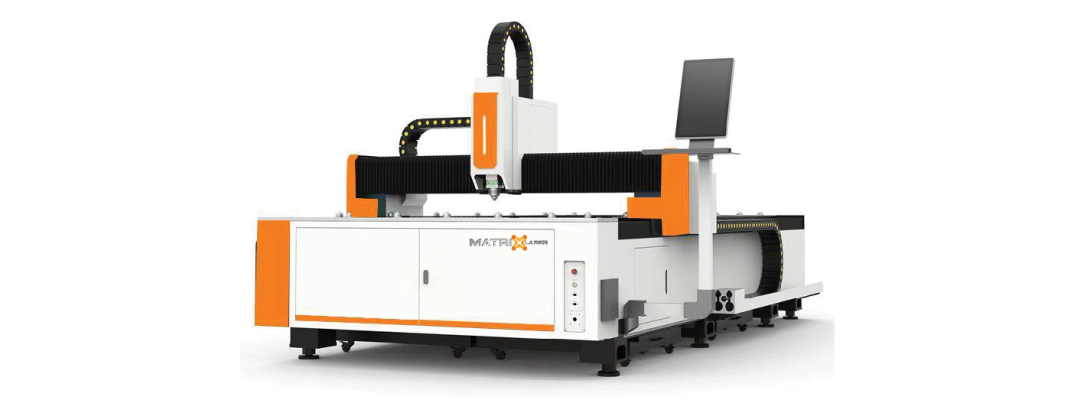

Model |
MXL-3015A (3000W) |
||
|
Working Area |
3000*1500mm |
||
|
X axis working area |
3,000mm |
||
|
Y axis working area |
1,500mm |
||
|
Laser Power |
Raycus 3,000W/ Max 3000W |
||
|
XY Axis Maximum Acceleration |
0.5-0.8g |
||
|
Repeatability positioning accuracy |
±0.02mm |
||
|
XY Axis Max. speed |
80m/min |
||
|
Working Table |
Serrate working platform |
||
|
XY Axis Transmission system |
Taiwan YYC Helical rack and pinion |
||
|
Z axis Transmission system |
Taiwan TBI ballscrew |
||
|
Cooling System |
Industry water chiller |
||
|
Power Supply Rated Voltage |
3-phase 380V/50Hz |
||
|
Packing size |
4600*2250*1900mm |
||
|
Weight |
2500KG |
||
|
Voltage |
380V 3PH 50HZ/60HZ |
||
|
Exhaust Fan |
5.5KW |
||
|
Gear Reducer |
Shimpo |
||
|
Controller |
Cypcut 2000E |
||
*Specifications are subject to change without prior notice, all rights reserved.
