Model |

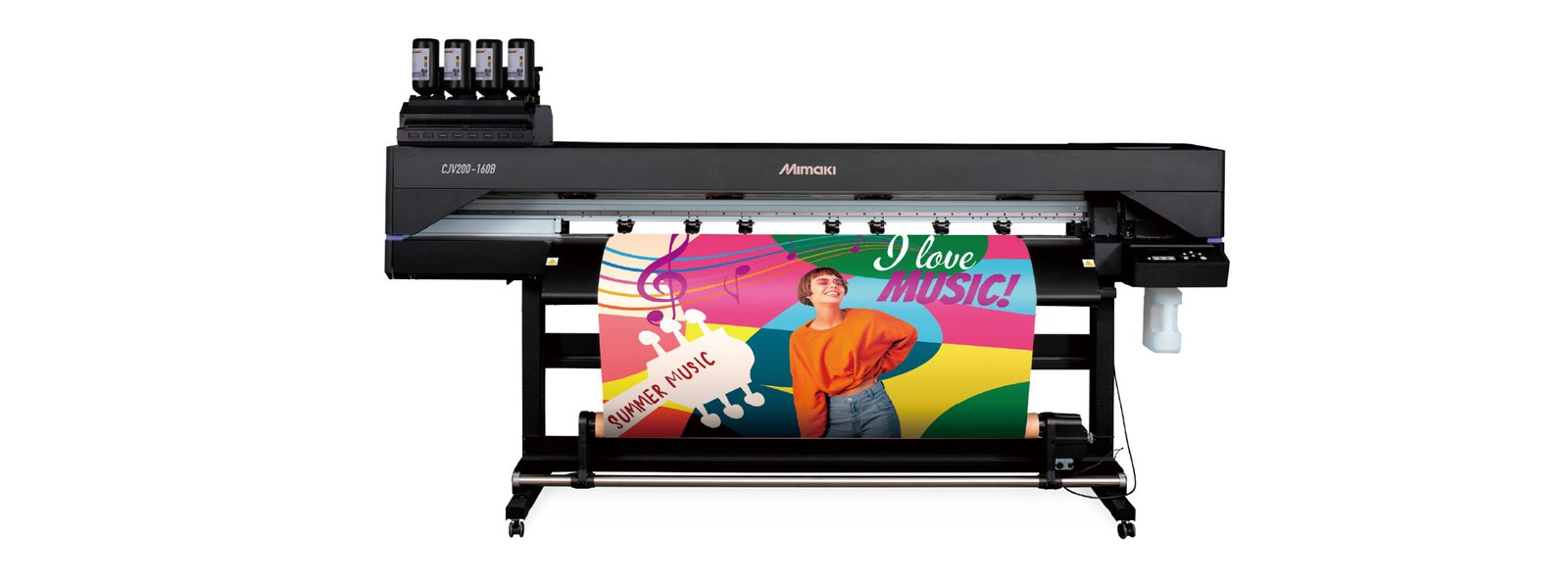

CJV200-160B |
|
|
Print Head |
On-demand piezo head |
|
|
Print Resolution |
Y: 600, 900, 1200 dpi I Y: 600, 1200dpi |
|
|
Head Gap |
2 Levels by Manual (1.5mm / 2.0mm) |
|
|
Ink |
Type/ Color |
Eco-Solvent Ink CS250 4 Color (C M Y K) |
|
Capacity |
1 L Bottle |
|
|
Max. Media Width |
1,620mm (63.8in) |
|
|
Max. Printable Width |
1,610mm (63.4in) |
|
|
Media Roll Outer Diameter |
Ø 180mm or less (7.1 in) |
|
|
Media Roll Weight |
25kg(55.1 Lb)more Less [45kg (99.2Ib) or less with option] |
|
|
Media Roll Inside Diameter |
2/3 inch |
|
|
Cut Function |
Cut Speed/ Acceleration |
Speed: Max.300mm/s I Acceleration: Max.0.5G |
|
Cut Pressure |
10-450gf |
|
|
Cutter response times |
10times/ sec |
|
|
Repeatability |
± 0.2mm |
|
|
Interface |
Ethernet 1000 Base-T (Recommended/ USB 2.0 Hi-Speed) |
|
|
Power |
AC(100~120V/ 200~240V±10%) x 2 50/60Hz±1Hz |
|
|
Power Consumption |
Max.1,320W x 2/ 4.5W or less(Sleep mode) |
|
|
Operational Environment |
Temperature |
20 – 30ºC (68-86ºF) |
|
Humidity |
35-65% Rh (Non Condensing) |
|
|
Guaranteed Accuracy |
20-25ºC (68-77ºF) |
|
|
Dust Level |
Equivalent to general office |
|
|
Dimensions |
2.770mm x 748mm x 1,403mm |
|
|
Weight |
140kg |
|
*Specifications, designs and dimensions shown in this catalog may be subject to change without notice for technical improvements
