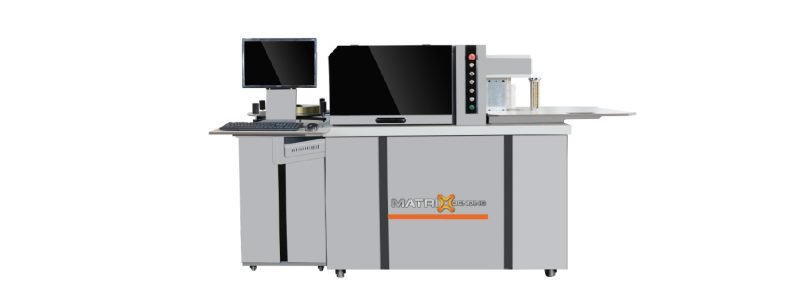

MATRIX MXB-AL200

Model

MXB-AL200

Processing Height

200mm

Applicable Materials

Stainless steel, galvanized sheet, iron, aluminum,

copper and other Metal coil, edge aluminum,

aluminum profile or other special-shaped profile

File Format

dxf、ai、plt

Minimum Bending Radius

R=3 MM

Material Thickness

0.3-1.2mm

Peak Power

2000W

Length Accuracy

0.1mm/m

Feeding Torque

>45Nm

Planer Slotted Torque Peak

>100Nm

Arc Bending Torque Peak

>100Nm

Arc Bending Torque Peak

1900*900*1600

Surface Treatment of Work-piece

Full chrome plating

N.Weight

550kg

Power

AC220V

Working Pressure

0.3-0.6mpa
