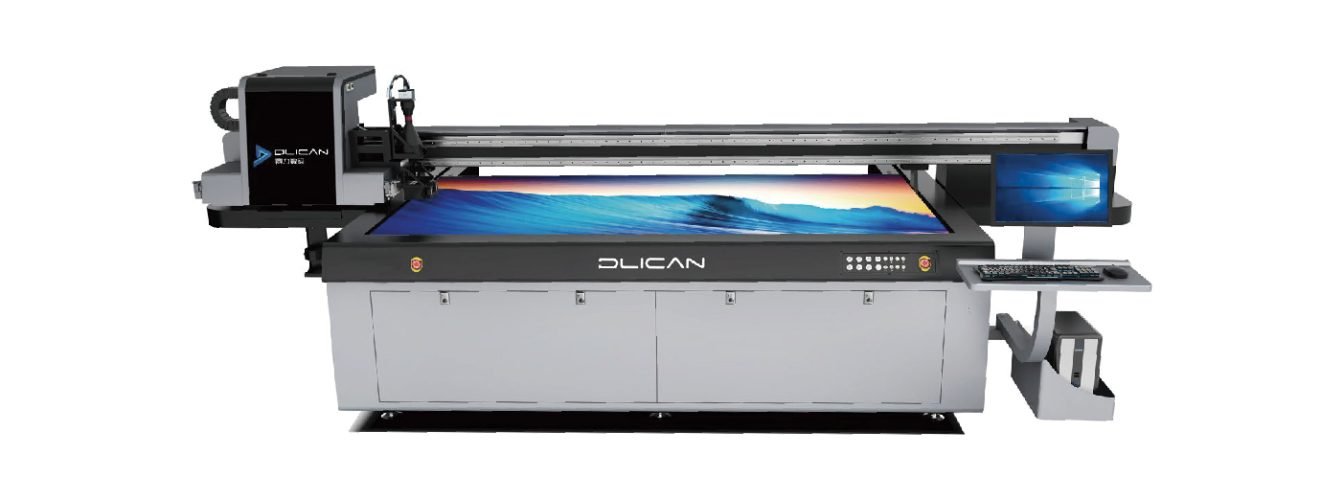

DLICAN DLI-2513-with-Camera

Model

DLI-2513 Carriage Visual System

Printing Size

Plate:2500*1300mm

Camera Range

Plate:2400*1200mm

Camera Lifting Height

0-200mm

Identifiacction System

Carriage Scanning System

Print Head Type

Ricoh G6/ Epson I3200/ I1600

Print Head Quantity

Ricoh G6, 2-8( Could be Customized)/ Epson 2-6 (Could be Customized)

Printing Color

CMYK + LCLM + W + V

RIP Software

Riprint

Printing Height

0-200mm (Could be Customized)

Printing Precision

960*900DPI/ 960*1200DPI/ 960*1800DPI

Data Interface

Gigabit Network Interface

Power Requirement

AC220V(±10%); 50HZ: P8000W

Driver Software

Microsoft Windows 10 Pro

File Format

TIFF(RGB&CMYK) BMP, PDF, EPS, JPEG etc..,

Operation Environment

Temperature:20° C-30 °C /Humidity:40-70%

Print Head Quantity

Ricoh G6, 2-8( Could be Customized)/ Epson 2-6 (Could be Customized)

Ink System

Continuous ink supply/ ink tank 2000ml/ subtank contant temperature and pressure/ white auto stirring

Printer Weight

1700KG/ 1390KG (Weights are different from different configurations)

Printer Dimension

4590mm*2180mm*1450mm
