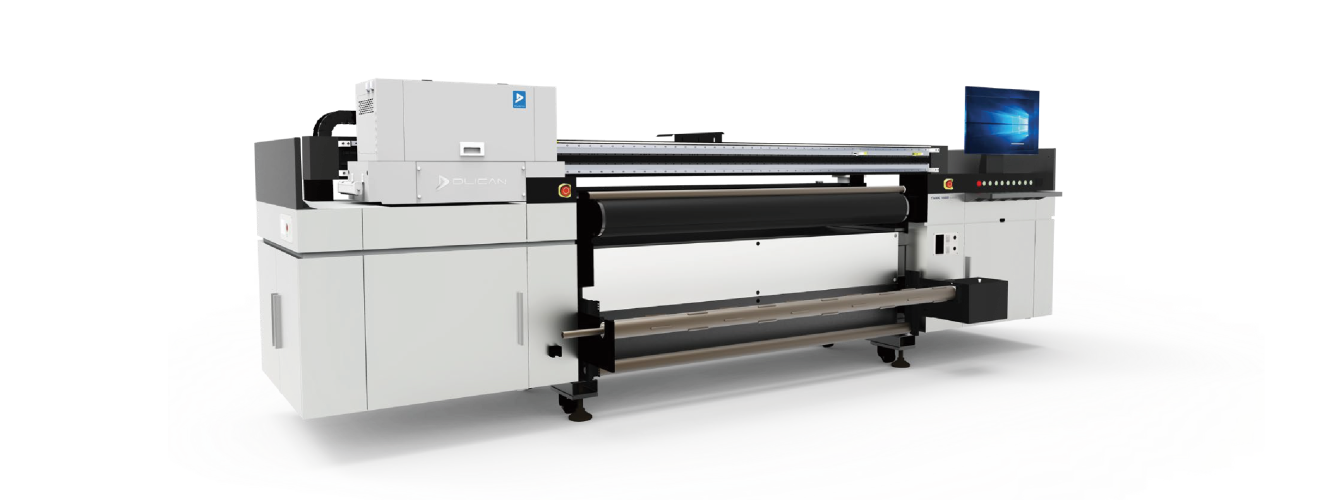

DLICAN DLI-1688

Model

DLI-1688

Printing Size

Plate: 1640*2000mm; coil: 1640mm(max)

Curing System

UV Lamp Curing

Print Head Quantity

4-18 (and can be customized)

Print Head Type

Konica 1024i; Ricoh Gen6; Ricoh Gen5S

Printing Color

CMYK + LcLm + W + V (Customizable)

Printing Precision

720*900DPI / 720*1200DPI / 720*1800DPI

Ink System

Continuous ink Supply/ Ink tank 2000ml)/ subtank constant temperature and pressure/ white auto stirring

Lifting Function

Automactic lifting of print head/ automatic monitoring of print height

Printing Height

0 – 50mm (Customizable)

RIP Software

Colorgate; Print factory; ONYX; Photo print; Reprint, etc.

Printer Dimension

4080mm * 1600mm * 1500mm

File Format

TIFF (RGB & CMYK), BMP, PDF, EPS, JPEG

Data Interface

High speed USB transfer interface/ Gigabit network interface

Operation Environment

Temperature 20^oC – 30^oC / Humidity: 40-70%

Power Requirements

AC220V (± 10%) : 50Hz: P:8000W

Printer Weight

1500Kg
