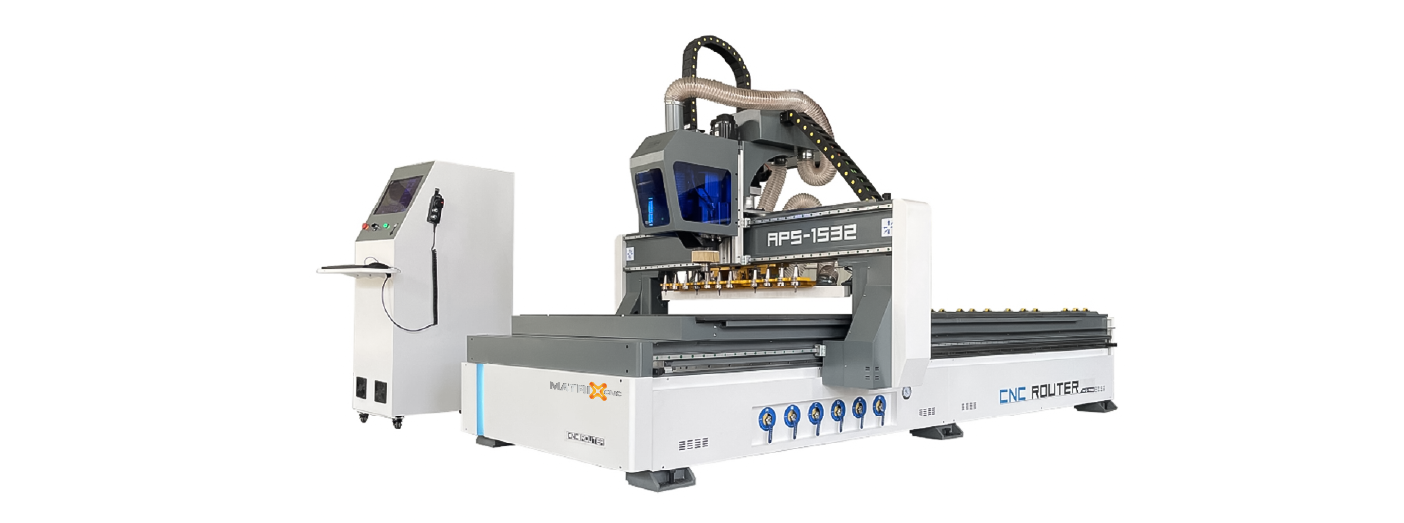

CNC MXCR-A APS SERIES

MODEL

1325

1530

2130

2140

X, Y Working Area (mm)

1300*2500

1500 x3000

2100*3000

2100*4000

Spindle Power

9kw ATC air cooling spindle

Tool Shank

ISO 30

Collet

ER32

Table Surface

Vacuum and T-slot

X,Y,Z Traveling Positioning Accuracy

±0.02/2000mm

X,Y,Z Rail and Transmission

X Y axis helical gear transmission, Z axis Taiwan TBI Ball Screw

Max. Rapid Travel Rate

60m/min

Max. Working Speed

40m/min

Spindle Speed

0-24,000RPM

Drive Motors

LeadshineShine servo motor and driver 1500w

Working Voltage

AC380V/3PH/50Hz(option:220V)

Command Language

G Code

Operating System

Taiwan LNC

Interface

USB

Software Capabilities

Option: Vectric Aspire, Type3, Ucancam, Artcam, Solidworks, etc.

Running Environment

Temperature: 0°C~45°C

Relative Humidity: 30%~75%

Machine Dimension

2.2*3.6*2.7m
